Centrifuge spindle

Centrifuge spindle laser cladding service

Product Description：

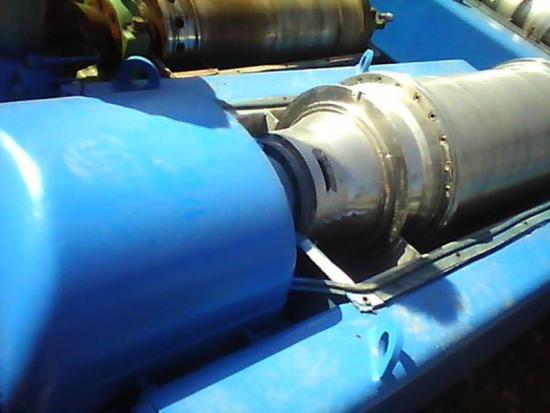

The decanter centrifuge is used for centrifugal dehydration and drying of polyvinyl chloride resin slurry. Due to the severe wear of the bearing position of the centrifuge spindle, the bearing and the shaft sleeve bite and cannot work normally, causing the chemical plant to stop. Wearing parts need to be customized, the production cycle is long, and parking brings huge economic losses to the enterprise.

WILA Laser Technical Solutions：

Sedimentary centrifuges cannot use traditional maintenance methods, and the wear parts need to be customized and the production cycle is long. After receiving the task, the WILA Laser technical R&D team analyzed, experimented, and finally determined the technical plan; the production department implemented it all night; all departments worked together and worked hard for two days, and finally completed the task successfully.

Repair Result：

The equipment runs smoothly, the sound is light, and the centrifuge bearing position runs well. The WILA laser cladding manufacturing technology can repair the spindle at a price less than 1/10 of the new product, and update the service cycle of worn parts. In addition to helping customers reduce the cost of parts procurement, it also reduces downtime losses.

Specific Repair Process：

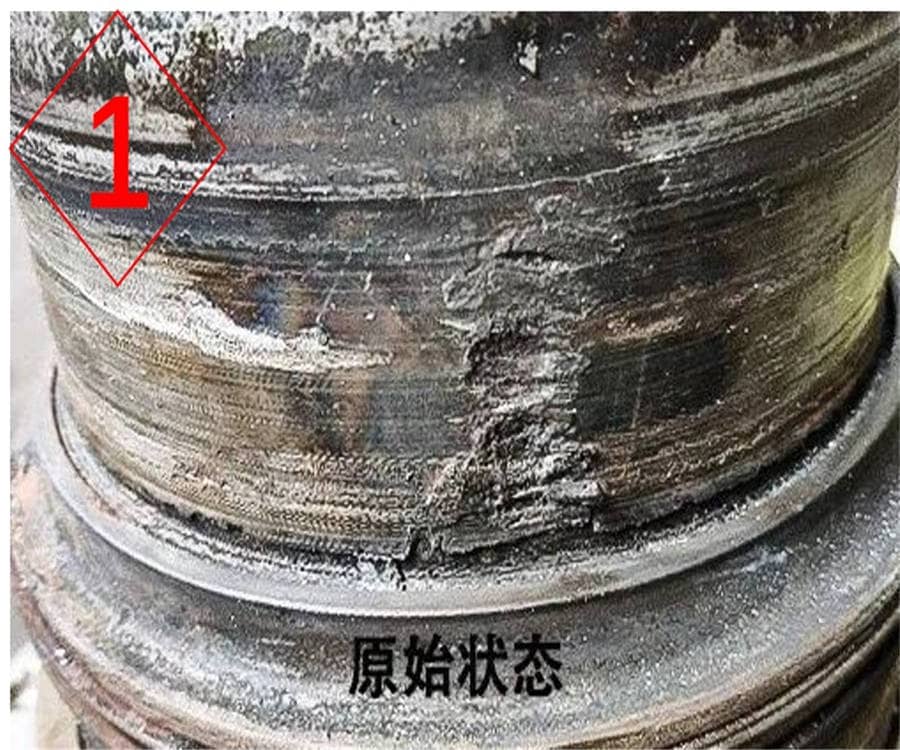

1. Evaluation and cleaning of original defective parts;

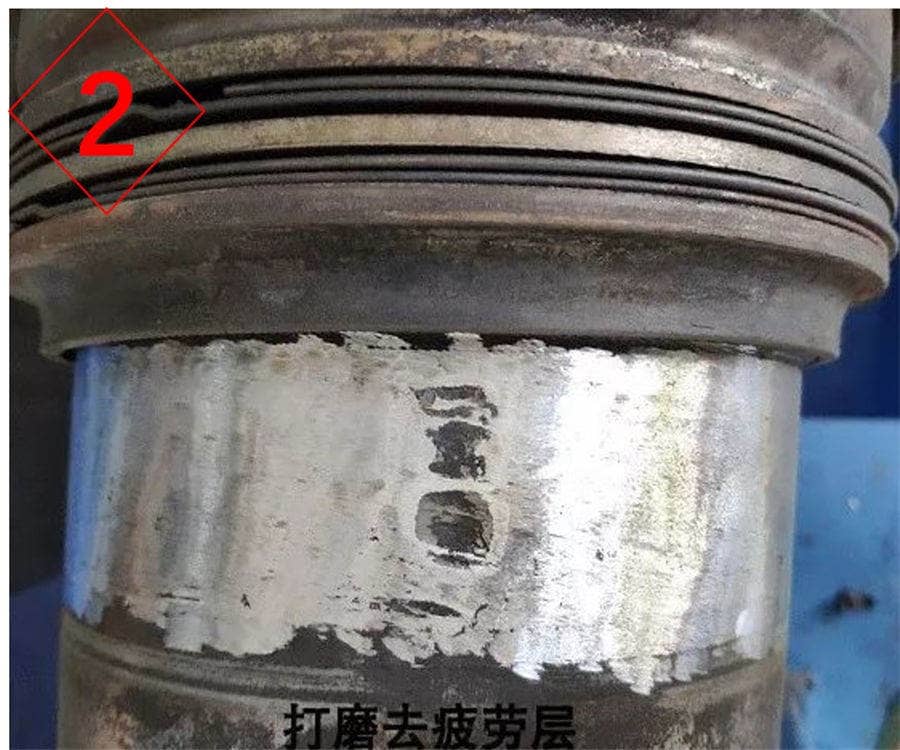

2. Polishing to remove the fatigue layer;

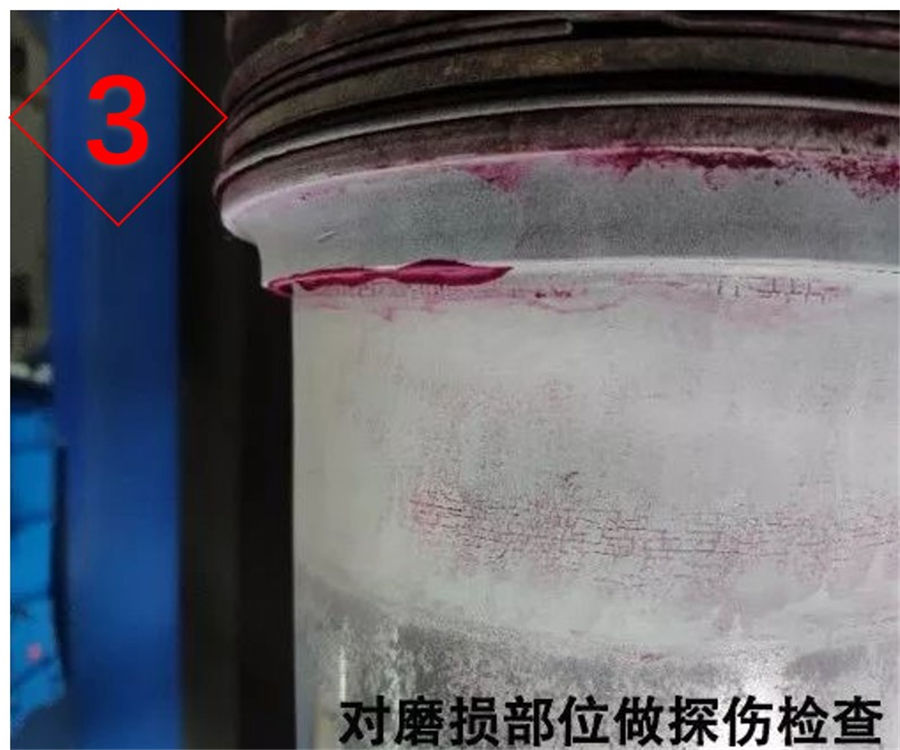

3. Flaw detection and inspection of worn parts;

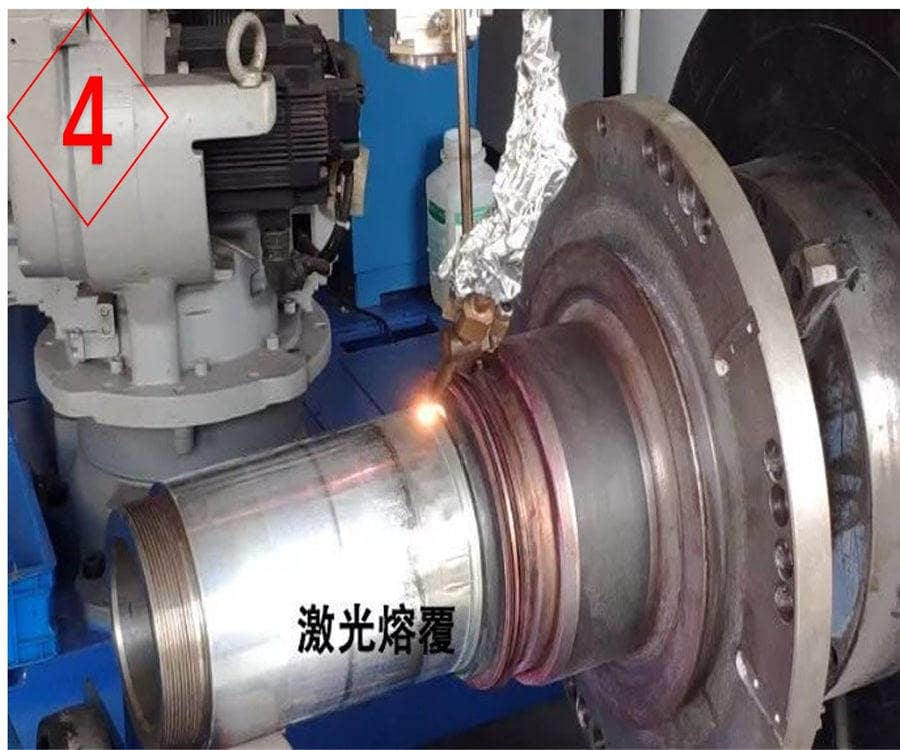

4. Laser cladding manufacturing;

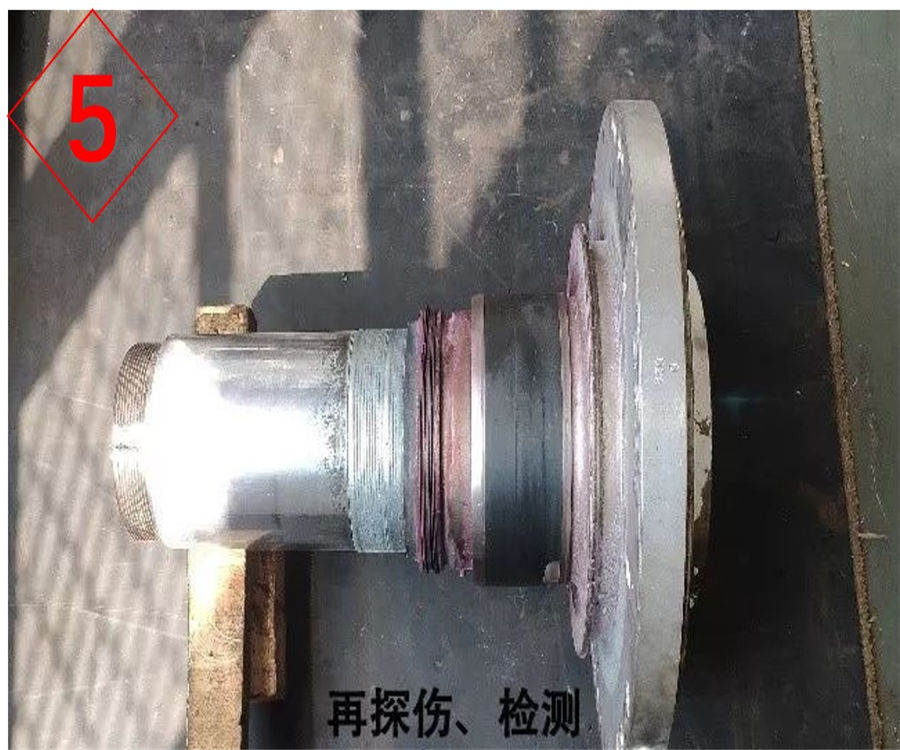

5. Re-detection and inspection;

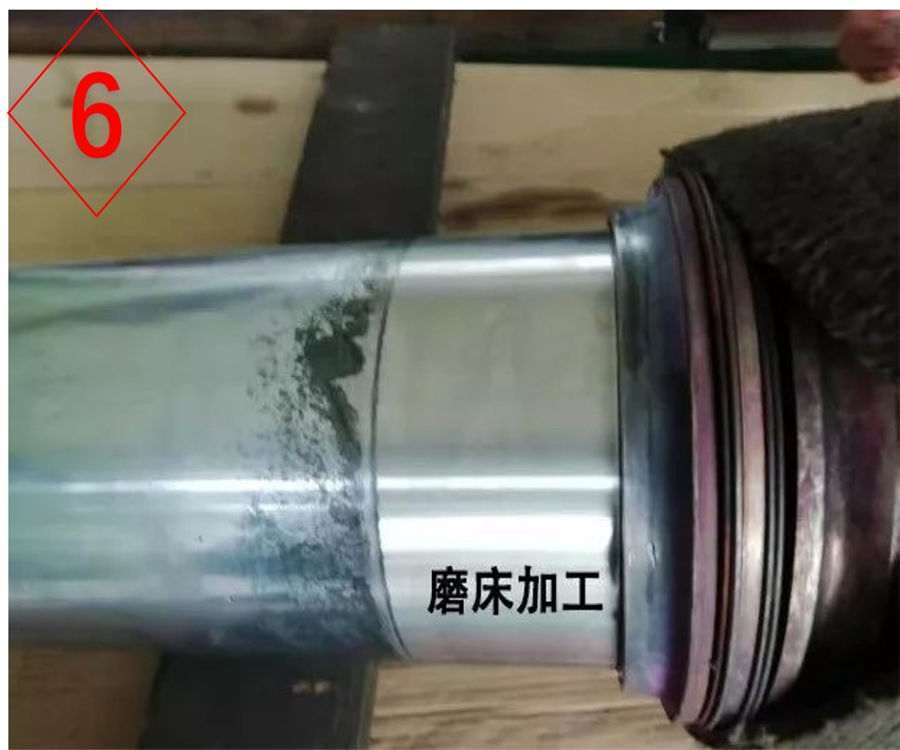

6. Machining of grinder
