HVOF

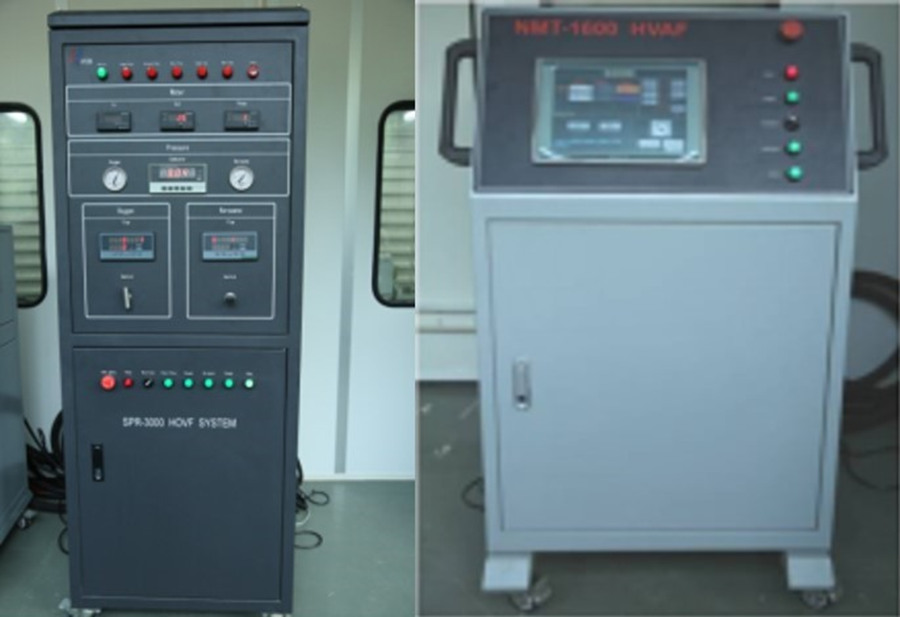

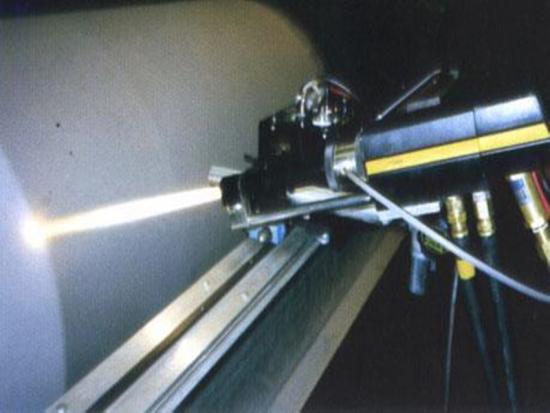

Supersonic flame spraying is a new type of thermal spraying technology invented in 1981 by Browning in the United States. The core of the HVOF equipment is the spray gun. The spray gun consists of a combustion chamber (to fully heat and accelerate the spray material particles), a Laval nozzle (to accelerate the flame flow to supersonic speed) and a constant cross-section nozzle (to make the spray material particles It is fully heated and accelerated) composed of three parts.

  • Payment:

    TT
  • Product origin:

    China
  • Shipping port:

    Shanghai
  • Lead Time:

    20 days after receiving the deposit
  • Product Details

HVOF Spraying Service


Overview:

The working principle is that the liquid that enters the combustion chamber from the small hole is burned, such as kerosene, which is ignited after being atomized and mixed with oxygen, and a strong gas phase reaction occurs. The heat energy released by the combustion causes the product to expand violently. When the expanding gas flows through the Laval nozzle, it is affected by the nozzle. The constraint of the formation of supersonic high temperature flame flow. The flame heating accelerates the sprayed material to the surface of the substrate, forming a high-quality coating.




Features of supersonic flame spraying:


1. The flame velocity is high but the temperature is relatively low, suitable for spraying carbide-containing materials.


2. The coating is dense and the surface roughness is low.


3. The bonding strength is slightly lower than that of explosive spraying, reaching more than 70MPa.


4. The spraying efficiency is high, but the fuel consumption is large, and the spraying cost is relatively high.


5. Loud noise (>120dB), sound insulation, and protective devices are required.



Commonly used materials for supersonic flame spraying:


1 The flame velocity is high but the temperature is relatively low, suitable for spraying carbide-containing materials.


2 The coating is dense and the surface roughness is low.


3 The bonding strength is slightly lower than that of explosive spraying, reaching more than 70MPa.


4 The spraying efficiency is high, but the fuel consumption is large, and the spraying cost is relatively high.


5 Loud noise (>120dB), sound insulation, and protective devices are required.



Common materials for supersonic flame spraying:


WC-12Co


WC-10Co-4Cr


WC-10Ni


CrC-NiCr


Nickel-based self-fluxing alloy


Cobalt-based self-fluxing alloy
